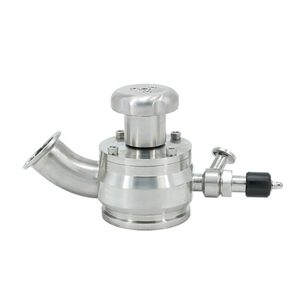

Válvulas de diafragma inferior de descarga aséptica de acero inoxidable SS316L

Aseptic Flush Bottom Valve is used for the discharge of reaction containers in clean industries such as pharmaceuticals, biology, fine chemicals, and food processing. This valve has the advantages of discharging materials, no residue, no leakage, and good sealing performance. When using an agitator, the bottom material of the container can fully rotate with the water flow when the agitator is opened to evenly mix the material. The valve is installed at a 35 degree angle to provide self-cleaning function for material discharge, making equipment maintenance more convenient in space. The valve is polished with a mirror surface with a roughness of 0.2-0.45 μ m. The use of valves is cleaner.
  • 0109011102B25
  • XUSHENG & COMPASS
  • 0109011102B25
Estado de Disponibilidad:
Cantidad:

The Details of product

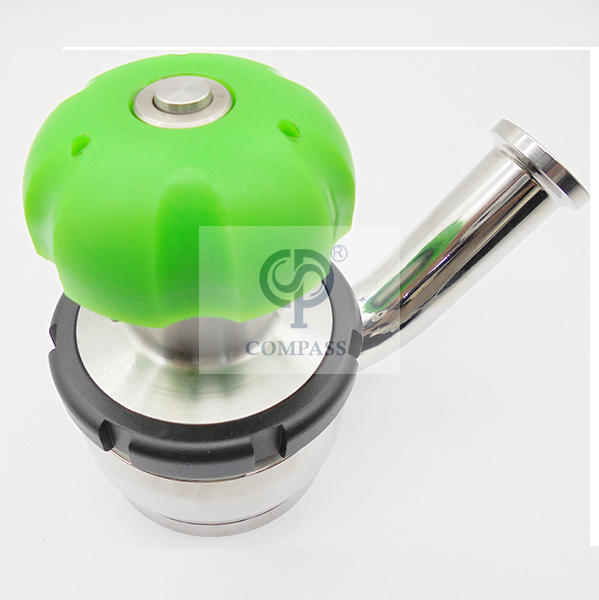

Aseptic Flush Bottom Valve is used for the discharge of reaction containers in clean industries such as pharmaceuticals, biology, fine chemicals, and food processing. This valve has the advantages of discharging materials, no residue, no leakage, and good sealing performance. When using an agitator, the bottom material of the container can fully rotate with the water flow when the agitator is opened to evenly mix the material. The valve is installed at a 35 degree angle to provide self-cleaning function for material discharge, making equipment maintenance more convenient in space. The valve is polished with a mirror surface with a roughness of 0.2-0.45 μ m. The use of valves is cleaner.


Standard

SMS, 3A, DIN

Material Contact Parts

SS316L(1.4404)

Provided with material inspection report

Material Non-contact Parts

SS304(1.4301)


Size

3/4”, 1”, 1.25”, 1.5”, 2”, DN20, DN25, DN32, DN40, DN50

Inlet Connection

Flush Bottom

Outlet Connection

Butt-weld,Tri-clamp

Seal Material

PTFE, the material comply with FDA21CFR117.2600

Drive Option

Manual, Pneumatic Control

Pressure Range

0~10bar(0~145psi)

Working Temperature

PTFE -4 ~ 266°F(-20~ + 130℃)

Sterilization Temperature

302°F (150℃)≤30min

External Surface Treatment

Ra32~64uin(0.8~1.6um)

Internal Surface Treatment

Ra16~32uin(0.2~0.45um)


Technical Summary

This utility model relates to a aseptic tank bottom valve, which includes a tank bottom valve body, where in the tank bottom valve body includes a suitable valve body and a valve cover, a valve chamber is set inside the valve body, and a valve core is matched with it, and the valve core is made of PTFE. The valve core includes an integrated valve core part and an elastic part, and a hollow structure is set inside the valve core part, and at least one elastic support is set inside the hollow structure, A valve stem through hole is set at the center of the valve cover, and a valve stem fixedly connected to the valve core is inserted into the through hole of the valve stem.


A special steam port can be added to Xusheng &Compass  radial diaphragm valves for steam in place or flush through, whilst in-site. This feature solves downsteam problems and speed product changeover


Technical Specifications

Max. pressure: 0~10bar(0~145psi)

Temperature range

Working Temperature PTFE : -4 ~ 266°F(-20~ + 130℃)

Sterilization Temperature: PTFE -4 ~ 266°F(-20~ + 130℃)

Surface Treatment

External: Ra32~64uin(0.8~1.6um)

Internal: Ra16~32uin(0.2~0.45um)


Options
1. The available size is 3/4”-2”, DN20~DN50
2. Outlet Connection can be Butt-weld,Tri-clamp
3. Drive Operation has Manual and Pneumatic Control


Design Features
1. The bottom of the tank will not accumulate liquid

2. It can be opened automatically when the pressure is too high.

3. It is practical, simple, has a long service life, is safe and reliable, and is easy to promote.

4. No leakage

5. No cross contamination

6. Easy to clean


The drawings & Techanical


2. 无菌罐底阀 解刨图


Item

Name

Remark

1

Inlet

Heavy duty, extra thick weld flange for better, more consistent weldability

2

Seat


3

Outlet

Butt-weld,Tri-clamp

4

Self-draining


5

O-ring Seal

FKM (Viton)

6

Shoulder Seal

Simple,  Uniform, Every time

7

Diaphragm

PTFE

8

 Chamber

Heavy duty, extra thick weld flange for better, more consistent weldability


1.手动无菌罐底阀 图纸


Applications


1. Pharmaceuticals

2. Biology

3. Fine chemicals

4. Food processing

5. Fermentation


场景修改1场景修改12
